Advanced Automatic Water Bottling Filling Line for Bottles

Informasi Dasar

Tempat asal:	Cina
Nama merek:	sunswell
Sertifikasi:	ce
Nomor model:	ssw

Kuantitas min Order:	1SET
Harga:	12000-120000
Waktu pengiriman:	90 Hari
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T

Harga terbaik Hubungi sekarang

Nama Mesin:	Penyegel Pengisian Botol Air Mineral Botol Mac	Aplikasi:	Pembotolan dan Pengepakan Air
Struktur mesin:	Rinser, Filler, Capper 3 in 1 Monoblok	Bahan:	Baja Tahan Karat 304, 316L Tersedia
Kemasan Produk:	Botol Plastik, Botol Pet, Botol Aluminium, Kaca	Fungsi:	Capper Pengisi Rinser Capper Pengisi Bilas
Volume botol:	200ml-2200ml	Kapasitas:	5000-40000 botol Per Jam
Akurasi Pengisian:	0,5%

Advanced Automatic Water Bottling Filling Line for Bottles

Description:
3 in 1 monoblock bottle water making machine can be applied to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.The water filler machine can be used for different water filling line.

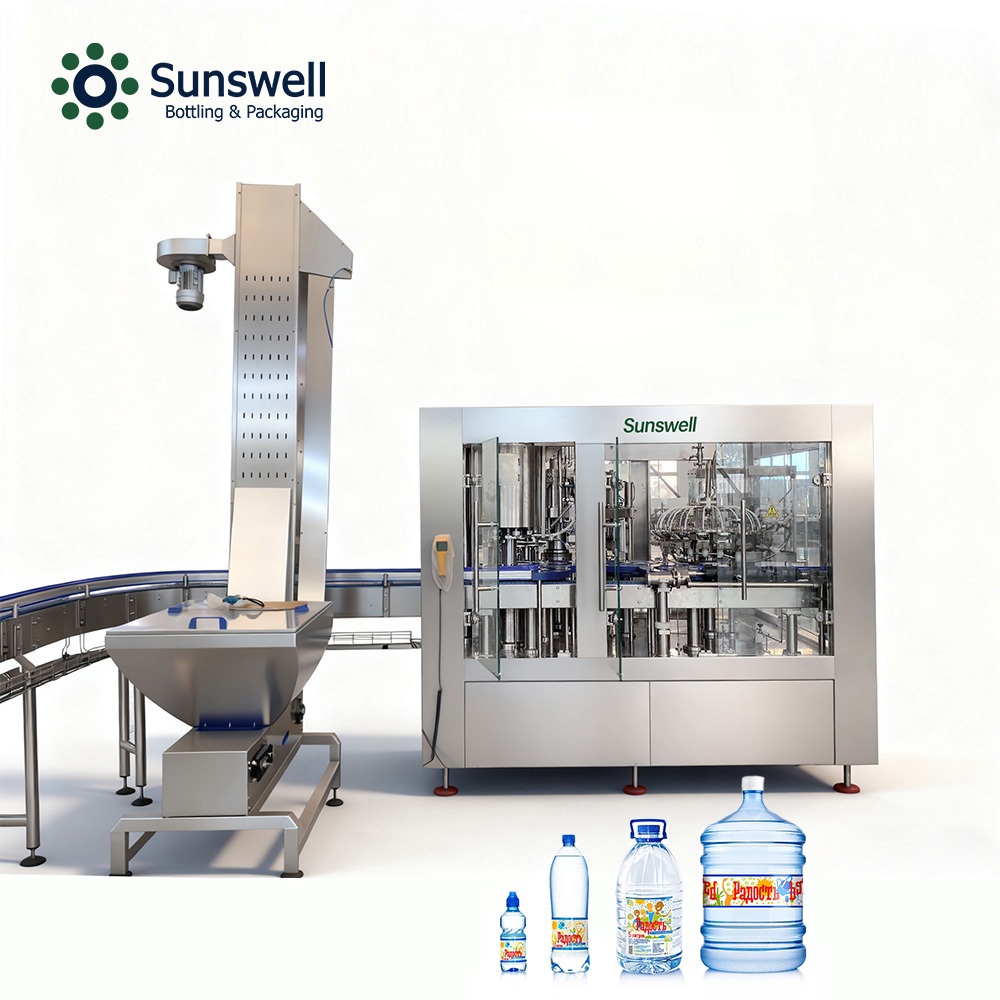

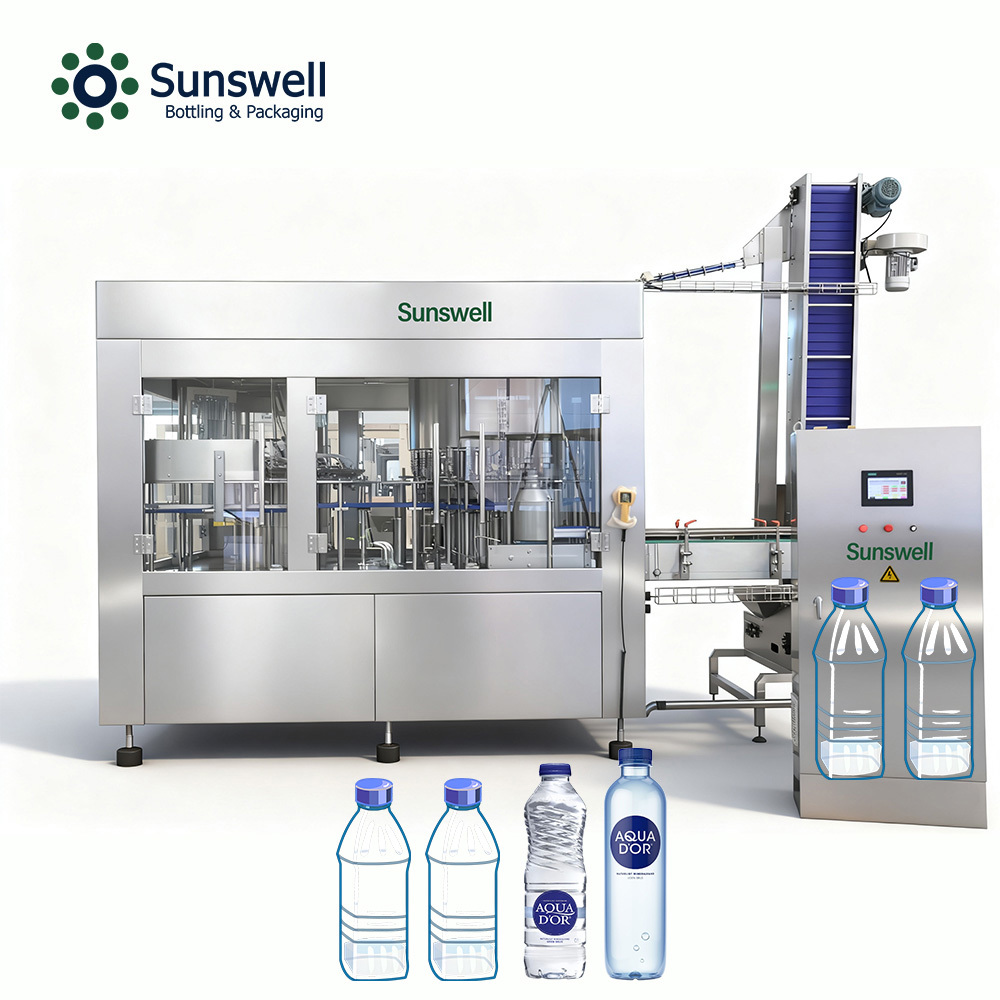

The whole machine is mainly composed of rinser, filler and capper.

Advanced Automatic Water Bottling Filling Line for Bottles 0

Advanced Automatic Water Bottling Filling Line for Bottles 1

Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012
washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000
Motor power(kw)	2.2kw	2.2kw	3kw	5.5kw	7.5kw	11kw
Weight (kg)	2500	3500	4500

Main features:

Advanced Automatic Water Bottling Filling Line for Bottles 2

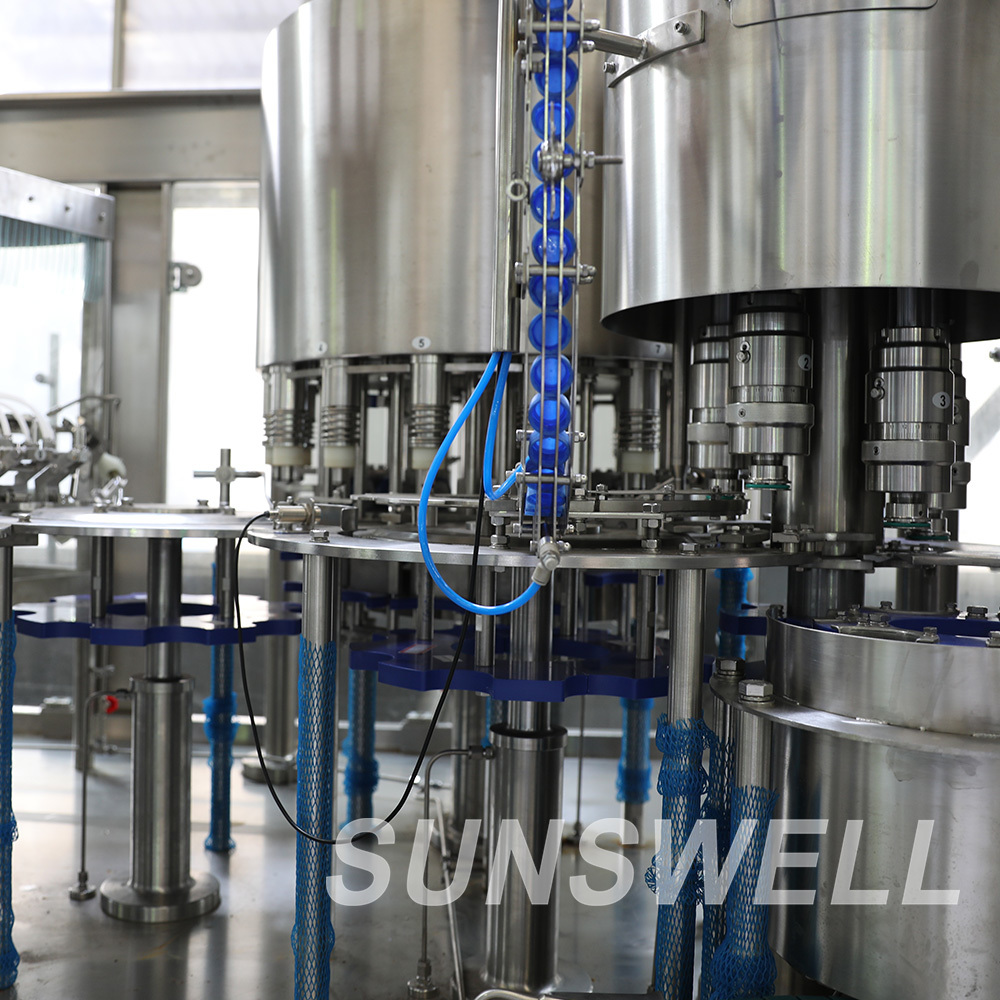

The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

FAQ:
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
